High-Capacity Fuel Transport with Advanced Engineering

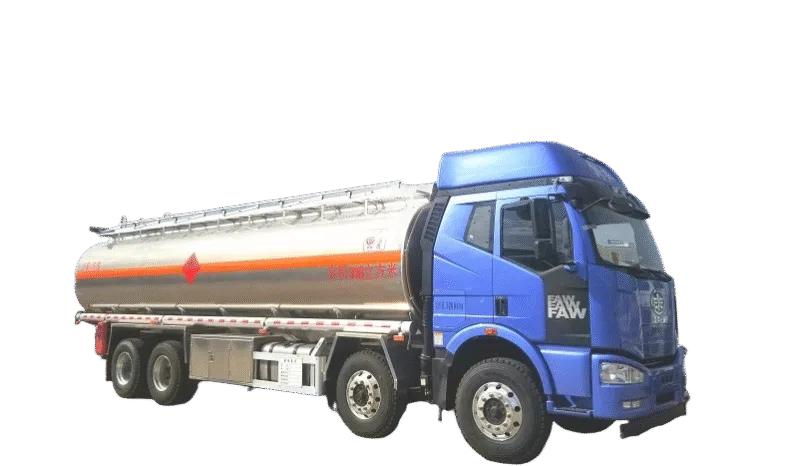

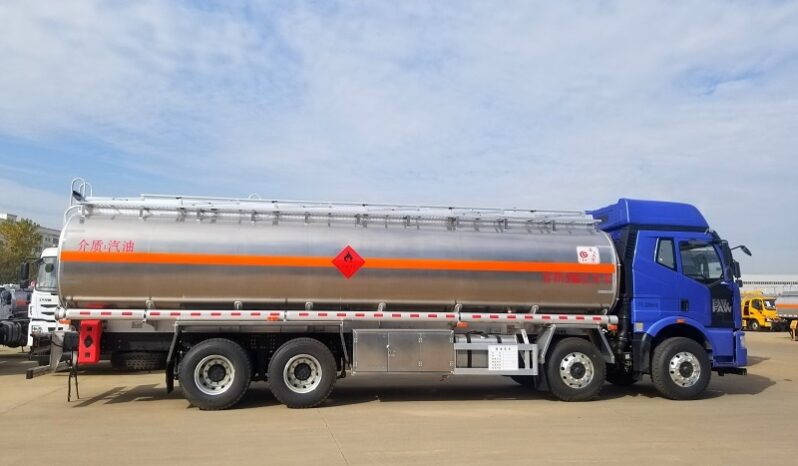

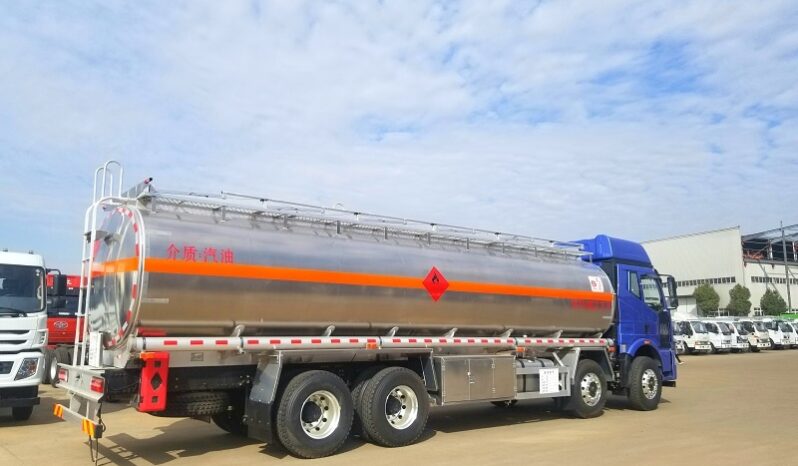

The FAW Jiefang 30000L Fuel Tank Truck is a top-tier solution for transporting gasoline, powered by a Dachai Deutz 325 HP common rail engine. Featuring a 30 m³ premium magnesium-aluminum alloy tank, this truck offers exceptional durability, safety, and efficiency for large-scale fuel logistics.

Chassis Configuration

  • Engine: Dachai Deutz, 325 HP (common rail, with urea tank)
  • Transmission: Jiefang 9-speed gearbox
  • Tires: 295 vacuum tires
  • Fuel Tank: 300L aluminum alloy
  • Cab Features:
    • Factory air conditioning
    • Central locking
    • Power windows
    • Electric/hydraulic lift
    • 2-point rear air suspension
  • Safety Features:
    • Front and rear disc brakes
    • ABS
    • Speed limiter
    • Pre-installed exhaust with spark arrester
    • 2 static grounding straps
    • 2kg dry powder fire extinguisher in cab
  • Extras:
    • Power steering
    • Clutch assist
    • High-efficiency single air filter
    • Aluminum radiator
    • Aluminum air reservoir
    • 150Ah battery
    • Front underguard
    • Electronic throttle
    • Iron bumper

Tank Features

  • Capacity: 30 m³ (approx. 30000L, gasoline medium)
  • Material: 5182 magnesium-aluminum alloy (6mm tank body and anti-wave baffles, 7mm heads, seamless roll-formed)
  • Oil Pump: Dedicated pump (Shenwei or Qilu brand), supports pumping in and out
  • Design: Straight tank with telescopic guardrails and patterned walkway

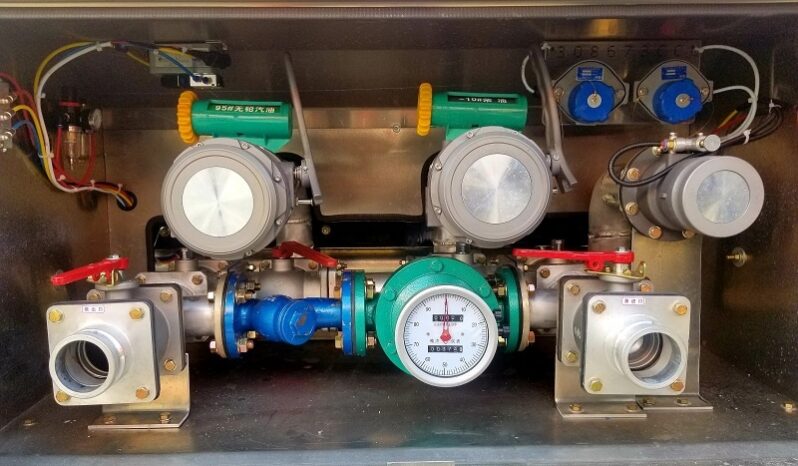

  • European-Standard Bottom-Loading System:
    • 2 European-standard manholes
    • 2 submarine valves
    • 1 bottom-loading port
    • 1 vapor recovery system
    • 1 liquid level probe with socket
  • Equipment:
    • 2 delivery hoses (equal to tank length)
    • Lockable fittings
    • 2 fire extinguishers
    • 1 fire cap
  • Finish: Aluminum alloy with safety signage

Why Choose This Truck?

The FAW Jiefang 30000L Fuel Tank Truck combines a Dachai Deutz 325 HP engine with a lightweight, seamless aluminum alloy tank, delivering high capacity and fuel efficiency. With European-standard fittings, advanced safety features like disc brakes and spark arresters, and a premium cab, it’s the ultimate choice for reliable fuel transport—contact us to customize yours today!
