High-Capacity Fuel Transport with Advanced Engineering

The Sinotruk SITRAK 25000L Fuel Tank Truck is a robust vehicle designed for transporting gasoline, diesel, and kerosene. Powered by the MC07H.35-60 engine and featuring a lightweight 5182 magnesium-aluminum alloy tank, this truck offers exceptional durability, safety, and efficiency for large-scale fuel logistics.

Chassis Configuration

  • Engine: MC07H.35-60

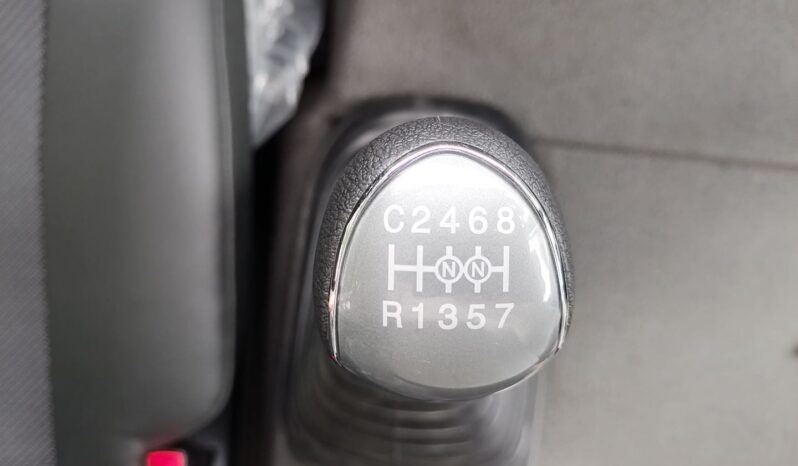

  • Transmission: HW13709XSTC2 gearbox + HW70 flange PTO
  • Wheelbase: 4575+1400 mm or 4975+1400 mm
  • Front Axle: VPD75D (disc brakes)
  • Rear Axle: MCY11BGS self-adjusting dual rear axle (drum brakes), 4.63 ratio
  • Frame: Double-layer (8+4/280 mm)
  • Suspension: Front few-leaf, rear air suspension (3/-/-)
  • Steering: 8198 system

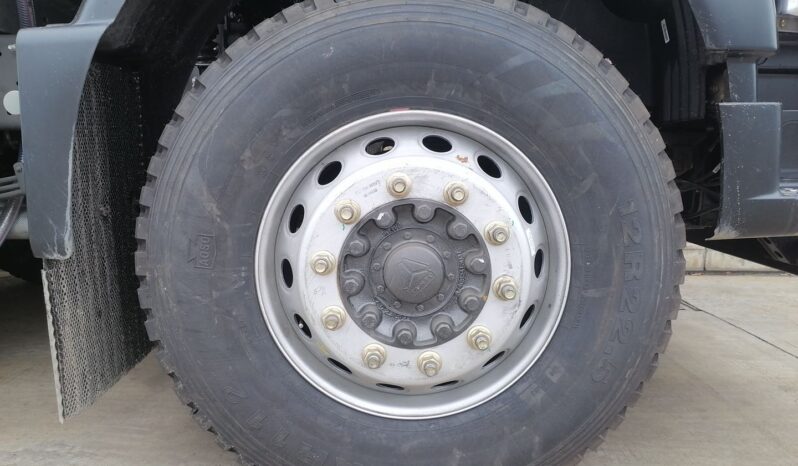

  • Tires: 295/80R22.5

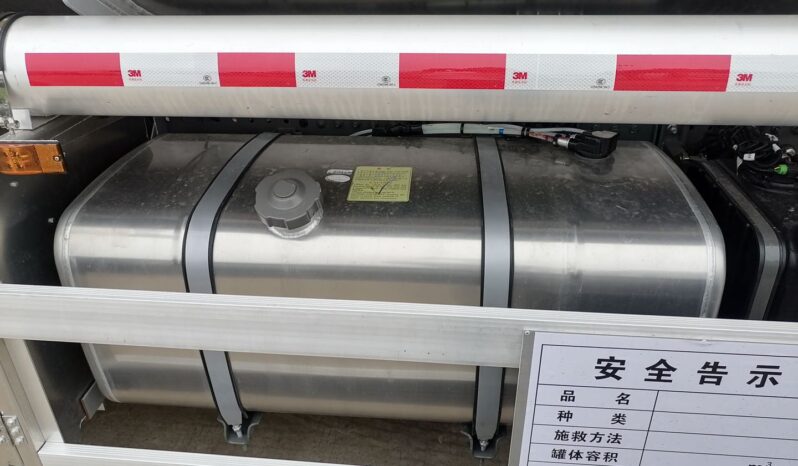

  • Fuel Tank: 400L
  • Safety Features:
    • Pre-installed exhaust system
    • EBS + ESC
    • LDWS (Lane Departure Warning System) + FCWS (Forward Collision Warning System) with radar
    • Tire blowout emergency device
    • Speed limiter

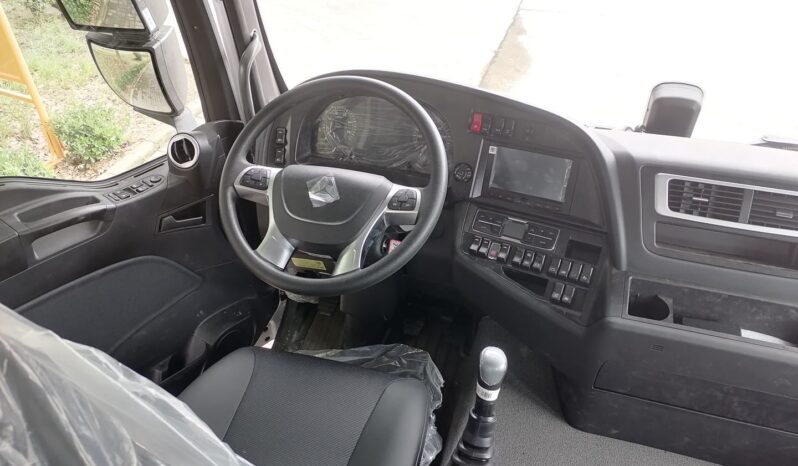

  • Comfort: Main airbag seat + basic co-driver seat, integrated electric/hydraulic lift, 180Ah battery
  • Extras:
    • Sinotruk Smart Tong D-Version (telematics)
    • Electromagnetic power switch
    • Mid-position non-metal bumper
    • Cable-operated PTO
    • Optional reverse buzzer
    • Optional tire pressure monitoring system

Tank Features

  • Capacity: 25.6 m³ (approx. 25000L)
  • Medium: Gasoline, diesel, kerosene
  • Material: 5182 magnesium-aluminum alloy, thickness ≥ 5 mm
  • Design: Single compartment
  • Vehicle Dimensions: 10235/9585 × 2525 × 3350 mm
  • Tank Dimensions: 7200 × 2400 × 1650 mm (L × W × H)
  • Weights:
    • Gross Weight: 26000 kg
    • Rated Payload: 15900/15965 kg
    • Curb Weight: 9905 kg
  • Standard Equipment:
    • Shandong Qilu oil pump (pump in/out)

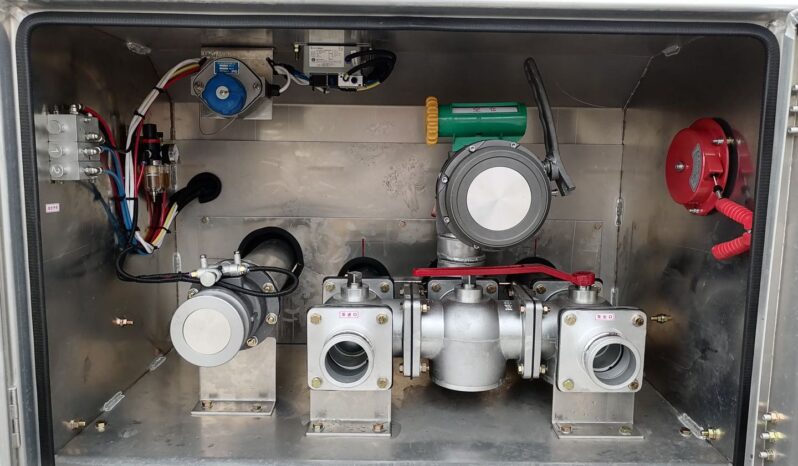

    • European-standard bottom-loading system:
      • 1 European-standard manhole with single breather valve
      • 1 submarine valve
      • 2 gravity valves
      • 1 vapor recovery system
      • 1 anti-overflow probe with socket
      • 1 bottom-loading port
  • Safety Enhancements:
    • Static grounding reel
    • Fire cap
    • Safety signage ("Flammable")
    • Reflective strips and rear reflective plate
  • Accessories:
    • Toolbox with European-style locks
    • 2 equal-length delivery hoses
    • 2 fire extinguishers
    • License plate light
    • Rear tow hook opening

Optional Upgrades

  • High-Flow Fuel Dispenser: Options include Shanghai Bole, Sanjin, or Zhongsheng tax-control dispensers with a 15m auto-retracting reel

Why Choose This Truck?

The Sinotruk SITRAK 25000L Fuel Tank Truck delivers power and efficiency with its MC07H.35-60 engine and aluminum alloy tank. Lightweight yet durable, it maximizes payload while ensuring corrosion resistance. Equipped with European-standard fittings and safety features like EBS, ESC, and FCWS, it’s an ideal choice for fuel transport businesses seeking reliability, safety, and cost savings.
