High-Capacity Mobile Fueling with Advanced Safety

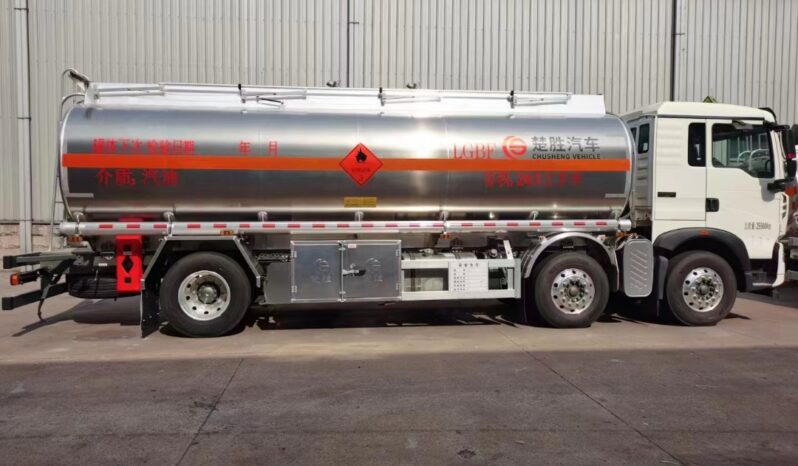

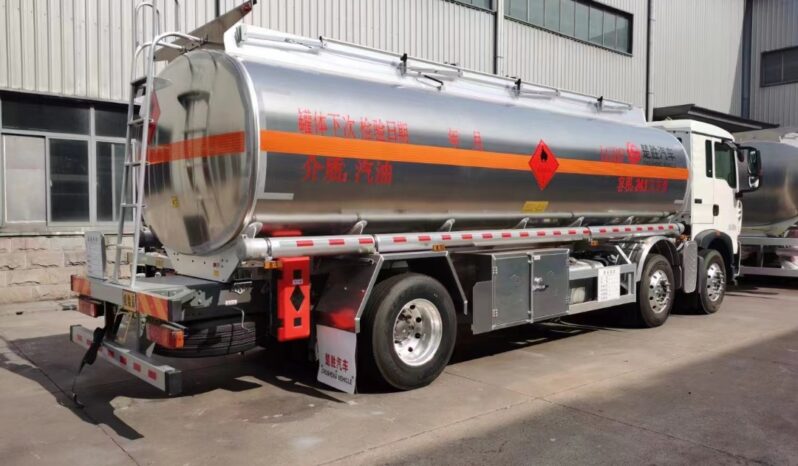

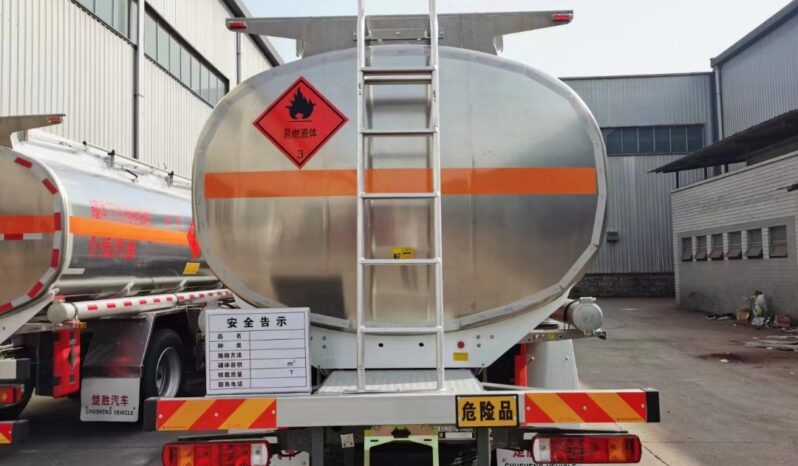

The Sinotruk HOWO 24000L Refueling Truck is a powerful and efficient solution for mobile fuel distribution. Built on a 6x2 HOWO chassis and featuring a lightweight 5182 aluminum alloy tank, this small tri-axle truck offers durability, safety, and compliance with the latest hazardous goods transport regulations.

Vehicle Overview

  • Overall Dimensions: 10020 × 2525 × 3450 mm
  • Tank Dimensions: 7200 × 2450 × 1720 mm
  • Gross Weight: 25.5 tons
  • Curb Weight: 9.2 tons
  • Rated Payload: Approx. 16.3 tons (based on max density)
  • Max Medium Density: 0.7 tons/m³ (gasoline)
  • Announced Tank Capacity: 24.1 m³ (standard tank, approx. 24000L)

Chassis Configuration

  • Drive Type: 6x2
  • Cab: HOWO TX5 semi-high roof, new design
  • Engine: German MAN 250 HP (National VI compliant)
  • Transmission: HOWO 8-speed gearbox (high/low range)
  • Axles: 7.5-ton dual front axle, 11.5-ton rear axle (airbag suspension)
  • Tires: 295/80R22.5 vacuum tires
  • Comfort: Factory air conditioning, power windows, central locking
  • Safety Features:
    • ABS
    • EBS (Electronic Braking System)
    • ESC (Electronic Stability Control)
    • TPMS (Tire Pressure Monitoring System)
    • LDWS (Lane Departure Warning System)
    • FCW (Forward Collision Warning)
    • Pre-installed exhaust with fire cap
    • Front disc brakes
    • Speed limiter
    • Front tire blowout protection
    • Brake pad wear alarm
    • Seatbelt reminder

Tank Features

  • Material: 5182 premium aluminum alloy
  • Oil Pump: High-flow, supports pumping in and out
  • Design: Dual compartments (evenly split)

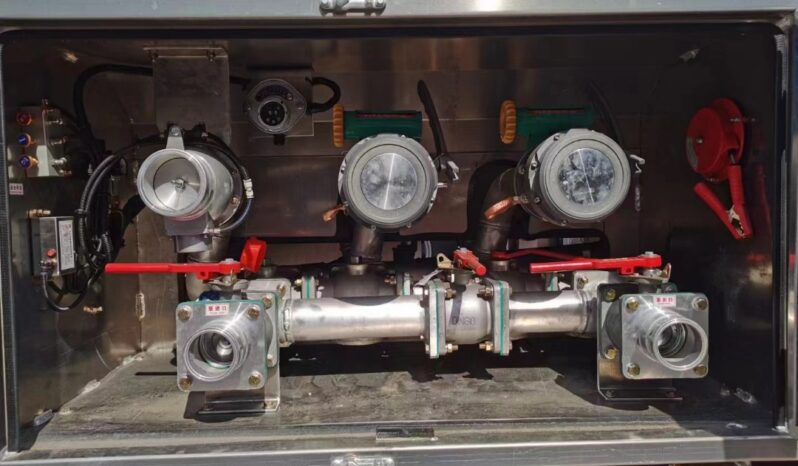

  • European-Standard Bottom-Loading System:
    • 2 bottom unloading valves
    • 2 vapor recovery valves
    • 1 shared vapor recovery interface
    • 2 anti-overflow probes with 2 five-pin sockets
  • Additional Equipment:
    • 2 European-standard tank covers
    • 1 emergency shut-off valve (smart type, new regulation)
    • Foldable lifting guardrails on tank top
  • Finish: Natural aluminum alloy color
  • Safety Markings:
    • 3M-Grade 1 orange reflective tape (center of both sides)
    • 3 "Flammable Liquid" signs
    • Safety warning signage
  • Extras: Factory-standard fittings

Optional Upgrades

  • Custom Compartments: Flexible division options
  • Flow Meter: For precise fuel dispensing

Why Choose This Truck?

The Sinotruk HOWO 24000L Refueling Truck combines a MAN 250 HP engine with a lightweight aluminum alloy tank, delivering high payload capacity and fuel efficiency. Equipped with dual European-standard systems and cutting-edge safety features like EBS, ESC, and TPMS, it meets global standards for hazardous goods transport. Perfect for businesses needing a reliable, mobile refueling solution with modern technology.
